HMC1160的基本参数

制造厂商：AD/ADI（Analog Devices，亚德诺半导体）
产品类别：压控振荡器 (VCO)
技术类目：带输出分频器的VCO
功能描述：MMIC VCO with Half Frequency Output, 8.45 GHz to 9.30 GHz
（AD代理渠道，提供当日发货、严格的质量标准，满足您的目标价格）

HMC1160的产品详情：

The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, output power and phase noise performance are excellent over temperature.

Power output is 12 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS compliant SMT package and requires no external matching components.

APPLICATIONS

Point to point and multipoint radio
Test equipment and industrial controls
VSAT

HMC1160的优势和特点：

Dual output: fO = 8.45 GHz to 9.3 GHz
fO/2 = 4.225 GHz to 4.65 GHz
POUT: 12 dBm

Phase noise: −116 dBc/Hz at 100 kHz
No external resonator needed
RoHS compliant, 5 mm × 5 mm SMT package: 25 mm2

HMC1160具体的完整产品型号参数及价格（美元）：

HMC1160LP5E，封装：32-Lead QFN (5mm x 5mm w/ EP)，包装形式及数量：Cut Tape,500，工作温度：-40 to 85C，AD官网报价：23.58（100-499个）

HMC1160LP5ETR，封装：32-Lead QFN (5mm x 5mm w/ EP)，包装形式及数量：卷带，500，工作温度：-40 to 85C，AD官网报价：23.58（100-499个）

HMC1160的评估套件：

EV1HMC1160LP5：EV1HMC1160LP5 Evaluation Board

This page contains ordering information for evaluating the EV1HMC1160LP5.

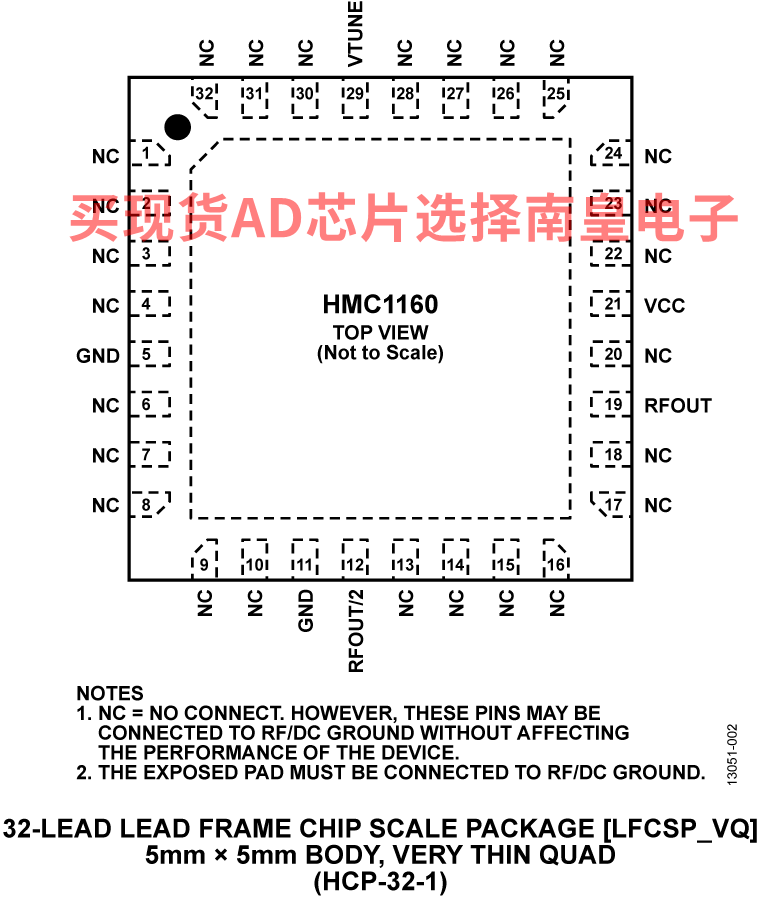

HMC1160的电路图解：

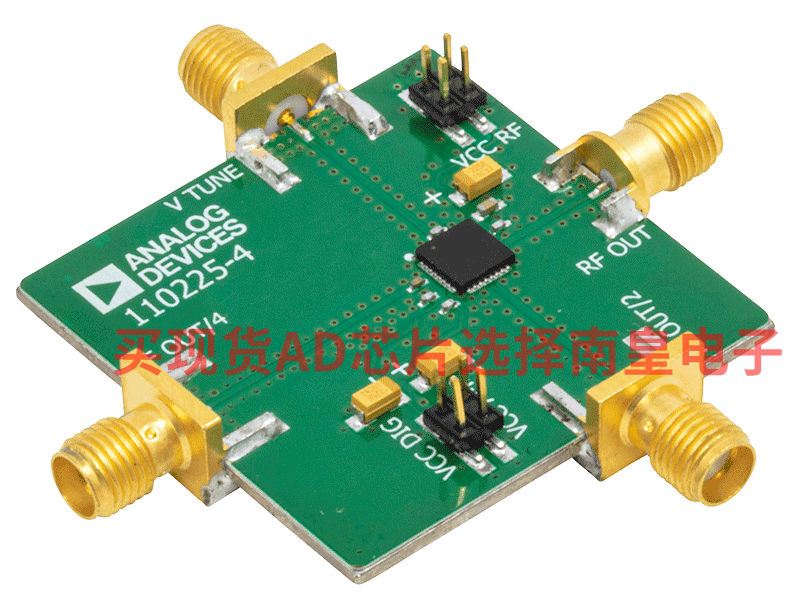

HMC1160的评估套件：
