The HMC772LC4 is a GaAs MMIC HEMT Low Noise Wideband Amplifier which operates between 2 and 12 GHz. The amplifier provides 15 dB of gain, 1.8 dB noise figure up to 12 GHz and output IP3 of +25 dBm, while requiring only 45 mA from a +4V supply voltage. The Psat output power of up to +15 dBm enables the LNA to function as a LO driver for many of Hittite's balanced, I/Q or image reject mixers. The HMC772LC4 also features I/Os that are DC blocked and internally matched to 50 Ohms, making it ideal for SMT based high capacity microwave radio applications. The HMC772LC4 is housed in a RoHS compliant 4x4 mm QFN leadless ceramic package.

Applications

• Wideband Communication Systems
• Surveillance Systems
• Point-to-Point Radio
• Point-to-Multi-Point Radios
• Military & Space
• Test Instrumentation

• Noise Figure: 1.8 dB
• Gain: 15 dB
• Output IP3: +25 dBm
• P1dB Output Power: +13 dBm
• Single Supply: +4V @ 45 mA
• 50 Ohm Matched Input/Output

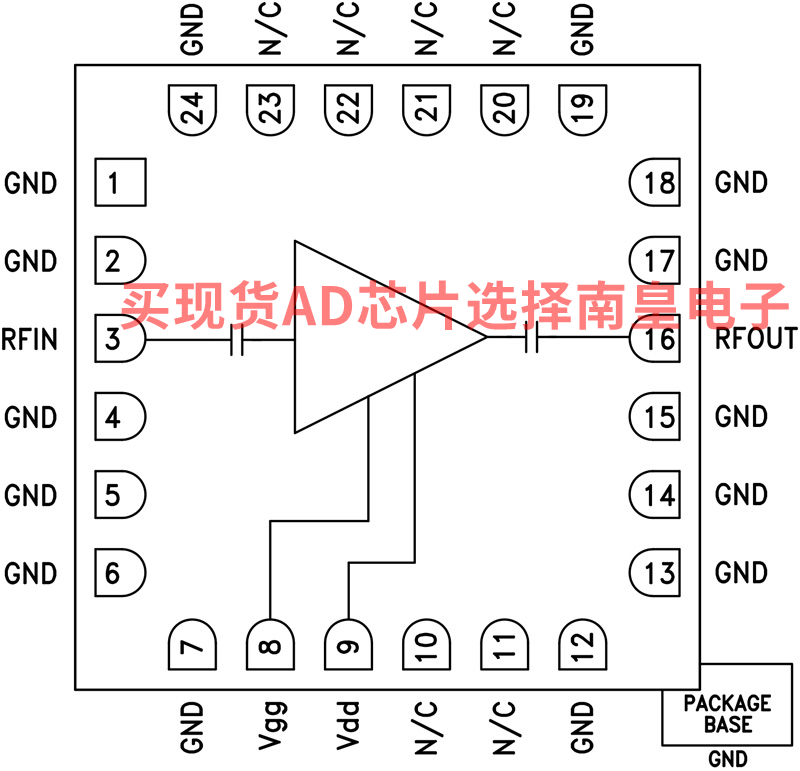

• 24 Lead 4x4mm SMT Package: 16mm²

HMC772LC4，封装：24-Lead LCC (4mm x 4mm w/ EP)，包装形式及数量：Cut Tape,500，工作温度：-40 to 85C，AD官网报价：83.57（100-499个）

HMC772LC4TR，封装：24-Lead LCC (4mm x 4mm w/ EP)，包装形式及数量：卷带，100，工作温度：-40 to 85C，AD官网报价：83.57（100-499个）

HMC772LC4TR-R5，封装：24-Lead LCC (4mm x 4mm w/ EP)，包装形式及数量：卷带，500，工作温度：-40 to 85C，AD官网报价：83.57（100-499个）

EVAL-HMC772LC4：HMC772LC4评估板

本页提供评估HMC772LC4的评估板订购信息。
